BÁO CHÁY TANDA

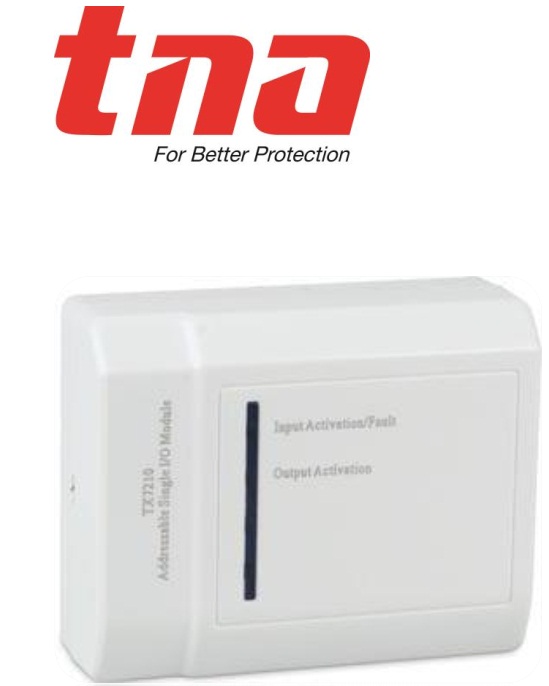

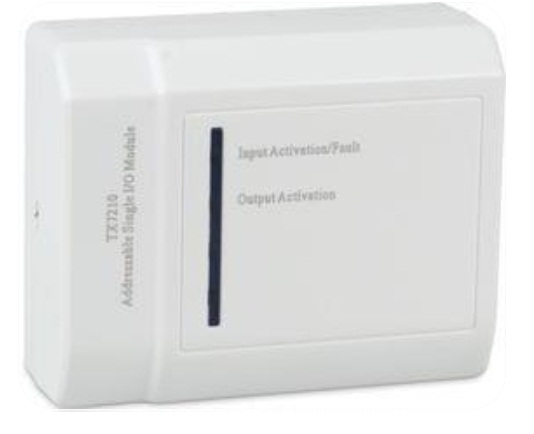

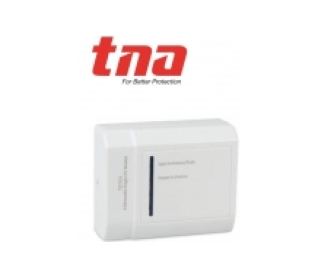

  • MODULE GIÁM SÁT 1 NGÕ VÀO ĐIỂU KHIỂN 1 NGÕ RA TX7210

  • Mã sản phẩm : TX7210
  • Hãng sản xuất: TANDA
  • Xuất xứ: UK

Download Catalogue: MODULE GIÁM SÁT 1 NGÕ VÀO ĐIỂU KHIỂN 1 NGÕ RA (594.68 KB)

Thông tin chi tiết

Technical Specification
Listed LPCB / CE-CPR
Compliance EN54-18:2005

Power Rating
Input Voltage Loop Power:24VDC [16V to 28V]
External PSU: 20 to 28VDC
Current Consumption Loop: Standby 0.6mA, Alarm: 1.6mA
External PSU: Standby 0.6mA, Alarm: 45mA
Control output voltage 24VDC / 2A rating

Module
Input Relay Normally Open dry contact
Input Resistance 5.1Kohms/ ¼ W
Protocol/Addressing T&A, Value range from 1 to 254
Indicator Status Normal: Single blink/Active: Steady/Fault: Double Blink

Material / Colour ABS / White Glossy finishing
Dimension / LWH 108 mm x 86 mm x38 mm
Weight 170g (with Base), 92g (without Base)
Operating Temperature -10°C to +50°C
Ingress Protection Rating IP30
Humidity 0 to 95% Relative Humidity, Non condensing
